The OxiMax MT Series
OxiMax MT Series – Premium On-Site Chlorination for World-Class Aquatic Facilities
Description
Create crystal-clear water with confidence using the OxiMax MT Series—the intelligent electrochlorination system trusted by luxury resorts, commercial swimming pools, water parks and iconic water features around the world. Designed to generate fresh sodium hypochlorite on-site from salt, the MT Series eliminates the risks and ongoing costs of storing and handling hazardous liquid chlorine while delivering consistent, automated water disinfection.
Powered by advanced self-cleaning titanium electrode technology, the OxiMax MT Series provides exceptional performance, low operating costs and outstanding reliability, ensuring your pools remain safe, sparkling and guest-ready every day.
From boutique resorts to internationally recognised hotels and aquatic attractions, the MT Series is engineered to deliver superior water quality with minimal maintenance and maximum peace of mind. OxiMax MT systems are used in high-profile hospitality and leisure facilities, including luxury hotels and large commercial pool installations.
Our Products
Book an Appointment
Why Choose the OxiMax MT Series?
- Generate fresh chlorine on-site from salt
- No hazardous chemical transport or storage

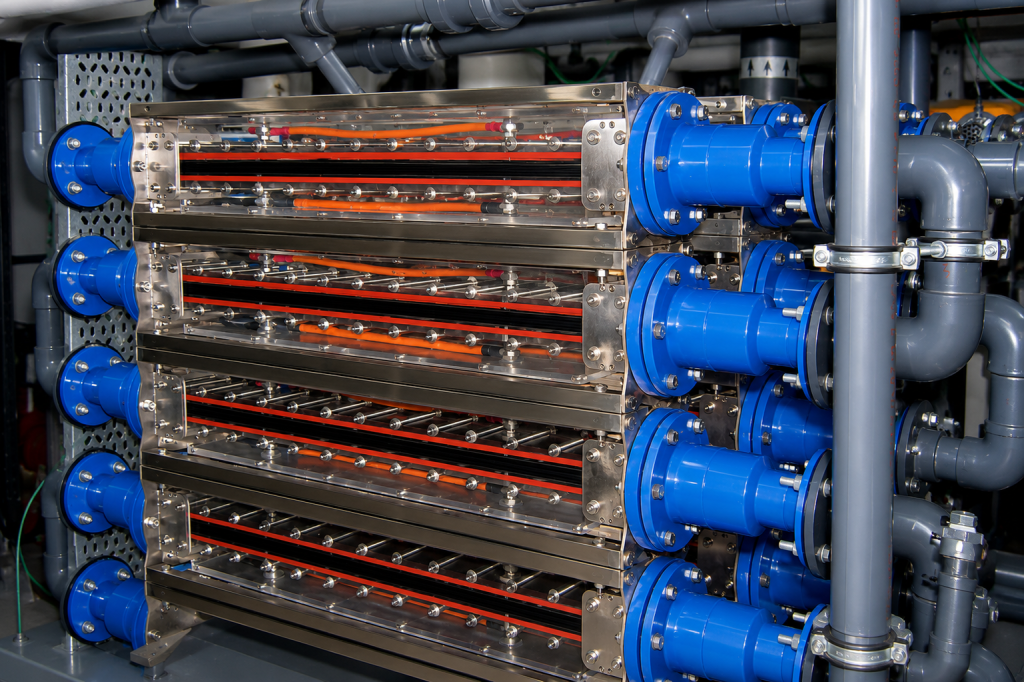

- Patented self-cleaning titanium electrolysis cells
- Consistent water quality with automated operation
- Lower chemical and operating costs
- Reduced maintenance and longer equipment life
- Ideal for resorts, hotels, commercial pools and water features
- Scalable outputs from 80–2,000 g/hr
- Engineered for continuous 24/7 performance
- Designed and supported by Water Engineers’ global electrochlorination specialists
When your reputation depends on pristine water, choose the electrochlorination system that delivers safer operation, lower lifecycle costs and uncompromising performance—the OxiMax MT Series.
| Production Capacity per Cell | |
|---|---|
| Cell Models | Capacity (g/hr) |
| MTLS150 | 150 |
| MTLS250 | 250 |
| MTS200 | 200 |
| MTS300 | 300 |
| MTV60 | 60 |
| MTV350 | 350 |
| OxiMax Model | MTLS150 | MTLS250 | MTS200 | MTS300 | MTV60 | MTV350 |
|---|---|---|---|---|---|---|
| Electrode Configuration | Parallel Plate | Parallel Plate | Parallel Plate | Parallel Plate | Tubular | Tubular |
| Hypo Output per Cell (g/hr) | 150 | 250 | 200 | 300 | 60 | 350 |
| Hypo Output per Cell (g/L/hr) | 5.8 | 6.0 | 4.8 | 7.2 | 1.4 | 8.4 |
| Water Salinity Range (g/L) | 5–8 | 5–8 | 25–40 | 25–40 | 0.5–40 | 0.5–40 |
| Recommended Water Flow (L/hr) | 8,000 | 8,000 | 12,000 | 12,000 | 3,800 | 6,000 |
| Required Power per Cell (Watts) | 1000 | 1500 | 1000 | 1500 | 300 | 1500 |
| Power Consumption (kWh/kg) | 5.4 | 5.4 | 4.0 | 4.0 | 3.6–15 | 3.6–15 |
| Max. No. Cells per Assembly | 6 | 10 | 8 | 10 | 6 | 30 |
| Max. Output per Assembly (kg/day) | 21.6 | 60.0 | 28.8 | 72.0 | 8.6 | 252.0 |
| OxiMax Model | MM10 | MM25 | MM50 | MM100 | MM150 | MM250 | MM500 |
|---|---|---|---|---|---|---|---|
| Rated Hypo Output (g/hr) | 10 | 25 | 50 | 100 | 150 | 250 | 500 |
| Hypo Strength Range (g/L) | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 |
| Quantity of Water Treated to 2 ppm (litres/hr) | 5,000 | 12,500 | 25,000 | 50,000 | 75,000 | 125,000 | 250,000 |
| Control Module | |||||||
| Brine Pump | Peristaltic | Peristaltic | Peristaltic | Peristaltic | Peristaltic | Metering Pump | Metering Pump |
| Water Pump / Flow Control | Peristaltic | Peristaltic | Peristaltic | Maric Valve | Maric Valve | Maric Valve | Maric Valve |
| Electrolyser Module | |||||||
| Electrolyser Cell Type | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning |
| Supply AC Voltage / Frequency | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz |
| Recommended Connected Amps | 10 | 10 | 10 | 10 | 10 | 10 | 20 |
| Power Consumption (kWh DC) | 0.08 | 0.17 | 0.34 | 0.70 | 1.00 | 1.61 | 3.12 |
| Power Consumption (AC kWh/kg Cl2) | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 |
| Salt Saturator | |||||||
| Recommended Volume Salt Saturator (litres) | 50 | 50 | 50 | 250 | 250 | 250 | 500 |
| Salt Capacity (kg) | 38 | 38 | 38 | 188 | 188 | 188 | 375 |
| Days Operation at 50% Duty Cycle | 84.5 | 33.8 | 16.9 | 42.2 | 28.2 | 16.9 | 16.9 |
| Salt Consumption (kg salt/kg Cl2) | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 |
| Hypo Storage Tank | |||||||
| Recommended Volume Storage Tank (litres) | 60 | 60 | 60 | 250 | 250 | 250 | 500 |
| Volume Hydrogen Produced (litres/hr) | 6.97 | 17.42 | 34.85 | 69.70 | 104.55 | 174.24 | 348.5 |
| Hydrogen Fan Fitted | Optional | Optional | Optional | Yes | Yes | Yes | Yes |
| Machine Dimensions (L × W × H) (mm) | 380 × 335 × 622 | 380 × 335 × 622 | 380 × 335 × 622 | 610 × 335 × 675 | 610 × 335 × 675 | 610 × 335 × 675 | 610 × 335 × 675 |
| Machine Weight (kg) | 22 | 25 | 28 | 38 | 42 | 45 | 60 |
Data sheets for MM750–MM2000 are available on request.
